GENERAL
TLS-DESIGN No.:
21004
MAIN DATA
Length (overall)
79.9 m
Length (between PP)
77.20 m
Breadth (moulded)
16.80 m
Depth (main deck)
5.60 m
Draught (design)
4.50 m
Deadweight (design)
2,200 dwt
SPEED/ RANGE
Operational speed
13.0 kn
Top speed
13.0 kn
Range (total)
3000 nm
PROPULSION PLANT
Main Engines
2 x 1,100 kW
Gensets
2 x 600 kW
Azimuth Thruster
2 x 1,000 kW
Bow Thruster 1 x 430 kW
CARGO CAPACITIES
LNG cargo capacity 3,500 m³
KEY FEATURES
•
Adopts highest safety standards acc. To SOLAS, SIGTTO, OCIMF
•
Redundant Propulsion and maximum collision protection
•
Compact size for excellent manoeuvrability in ports and confined
waters
•
Superior Operability with
o
Dedicated Fender system for skin to skin operations
o
Dedicated LNG Transfer system for ship to ship refuelling
o
Cargo Manifolds for rapid loading and discharging
•
Rational design for worldwide service including ice infested waters
TECHNOLOG Services GmbH
Vorsetzen 50
20459 Hamburg
Germany
+49(0) 40 . 70 70 76-800
info@technolog.biz
http://www.technolog.biz

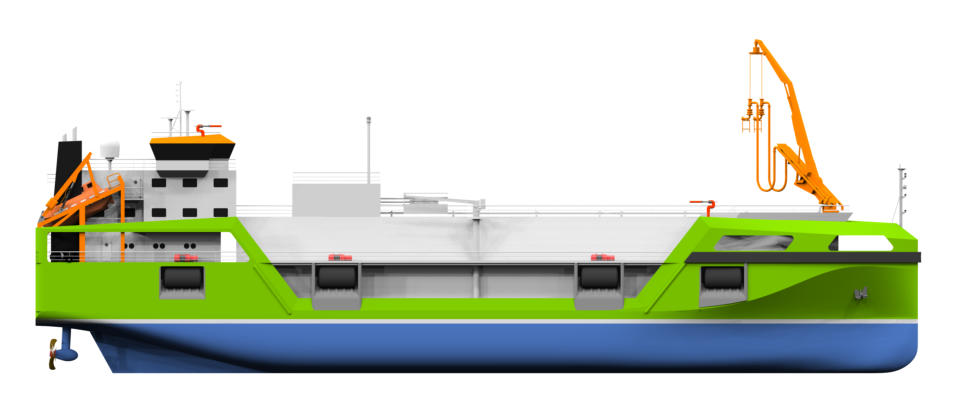

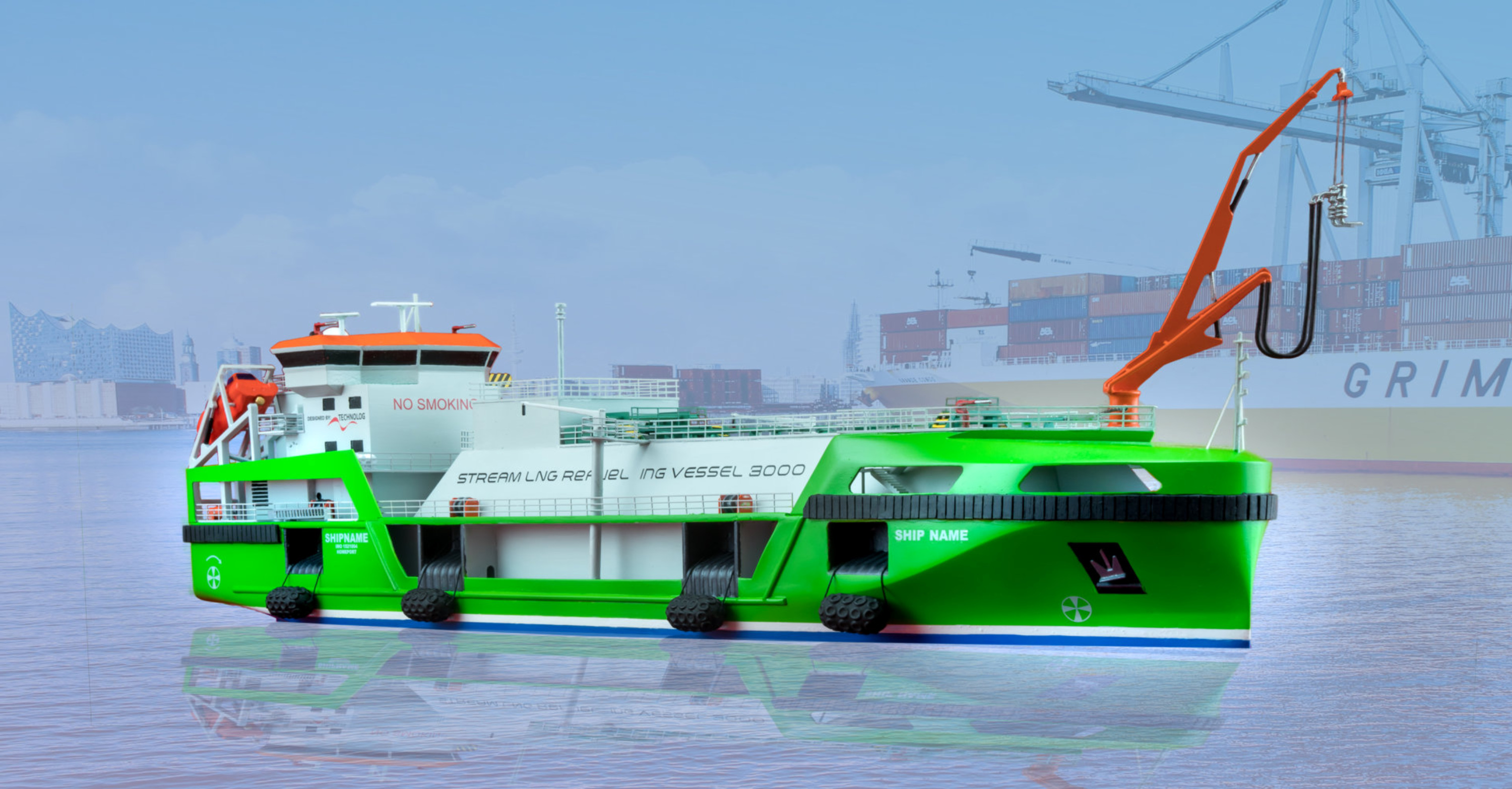

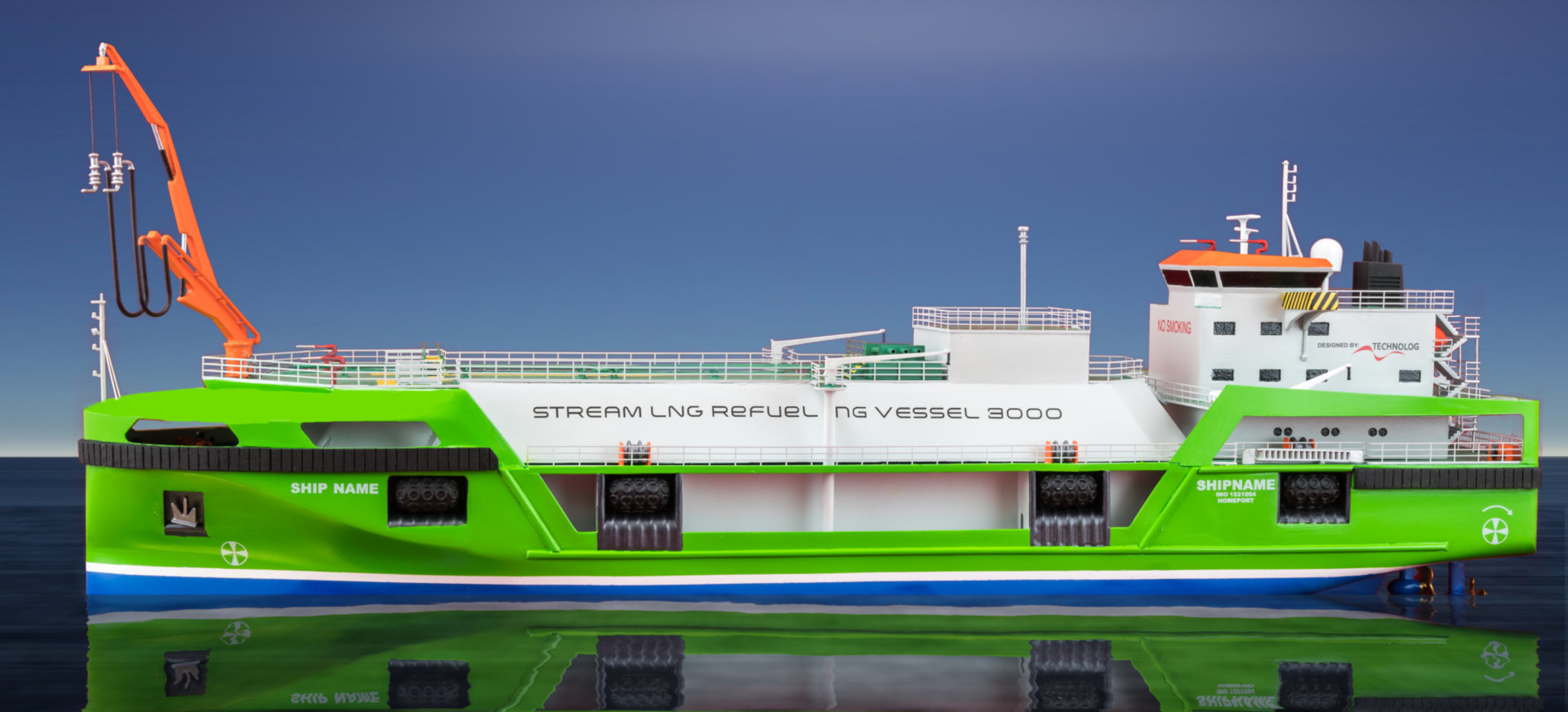

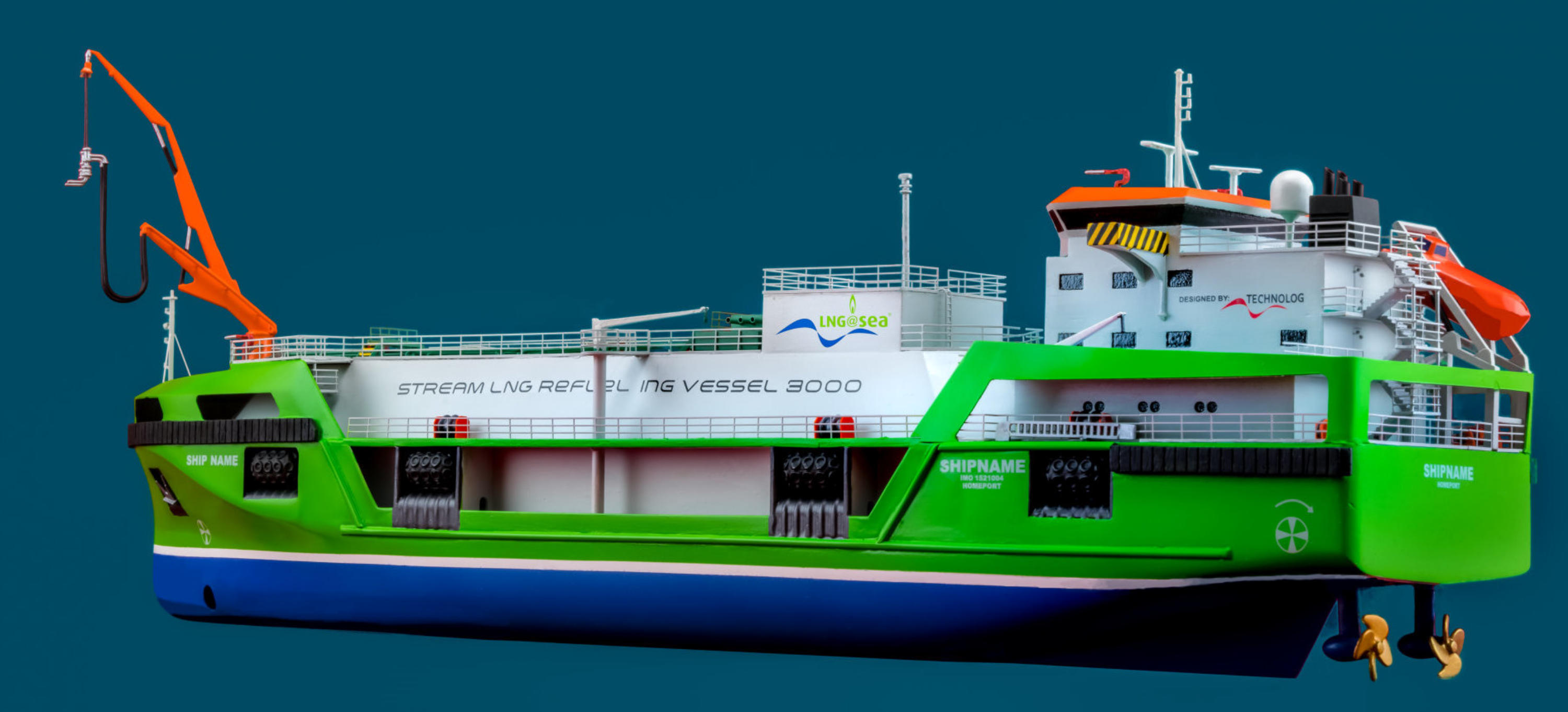

STREAM LNG REFUELLING 3000
LNG BUNKER VESSEL
Compact
LNG DUAL FUEL POWERED
Navigation
